SCHWARZ GYPSUM DISCHARGER

Founded in 1973 in LAUTENTHAL, Germany, Schwarz ACTUATOR GMBH is a German family-owned company that adheres to the concept of creating value through professionalism and has developed steadily in the field of industrial expertise.
Stable and reliable products: provide reliable guarantee for industrial automation;
The product is easy to operate: it enables users to save a lot of energy and improve efficiency;
Professional and precise products: to provide users with a variety of special solutions.

Product Introduction

SCHWARZ is a developer and manufacturer of equipment for discharging, feeding and conveying loose or sticky wet materials, which can solve the problem that the accumulation of materials in the silo cannot be processed in an orderly manner. Products are widely used in minerals, energy, electric power, chemical industry, building materials, environmental protection and other industries. Modern industry often encounters a variety of loose, viscous materials, such as: cement, coal ash, flue gas desulfurization gypsum, ore, ore, sludge, etc., these materials in the process of storage, unloading, transfer and other processes often appear in the problem of material bonding in the silo wall, especially the material is very easy to appear after a long time of stationary, resulting in the material in the silo blockage, very difficult to take out. The unloading device equipment of the German company SCHWARZ can solve this problem very well.

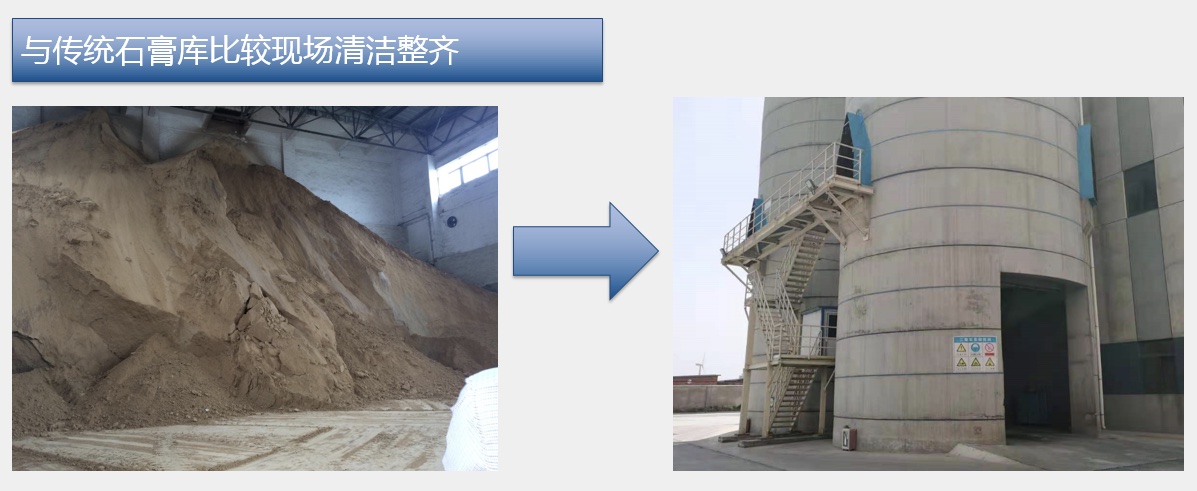

For the storage and transportation of loose gypsum materials with poor fluidity, the scraper type blanking device of the discharger can take out the bulk materials in the silo that are very difficult to remove with general machinery, including the most difficult powders, large agglomerates, and lumpy solid materials. It has proved that it does not require manual loading, is easy to operate, and the loading and unloading site is neat and clean, which will become the mainstream of FGD desulfurization gypsum silo equipment to achieve automation.

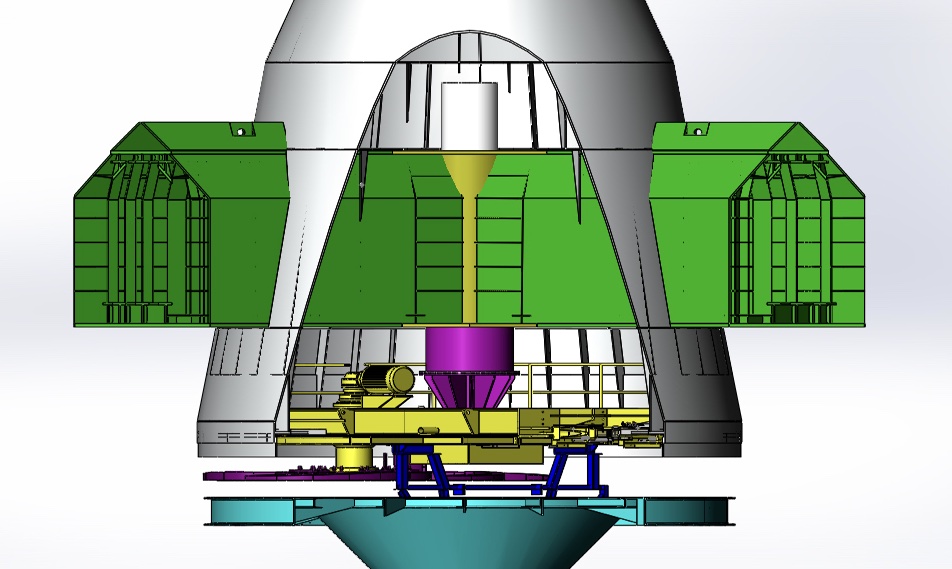

Main Structure


The unloading device is mainly composed of a discharge arm (scraper), a hydraulic system, a propulsion device, a discharging device, a wheel device, a frame platform, etc., which can achieve a discharge capacity of 0~1000t/h in a silo with a diameter of 6m~12m. The mechanism and main technical parameters are as follows:
